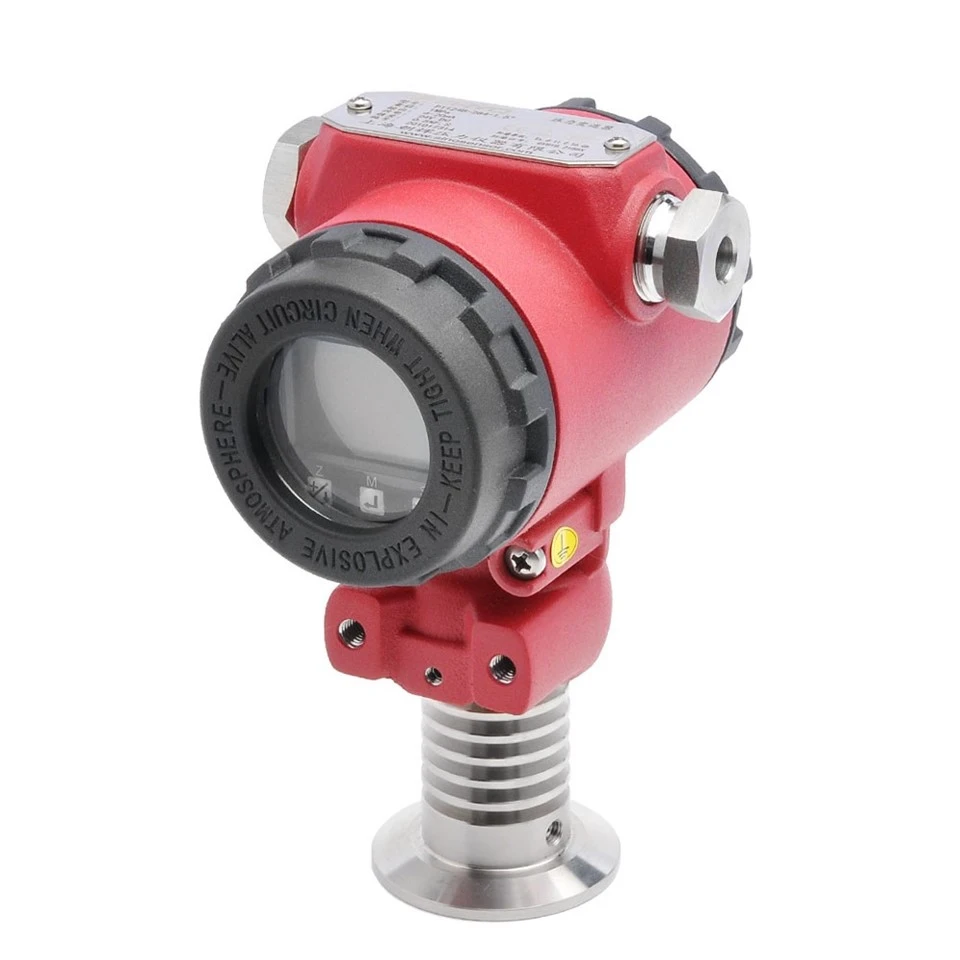

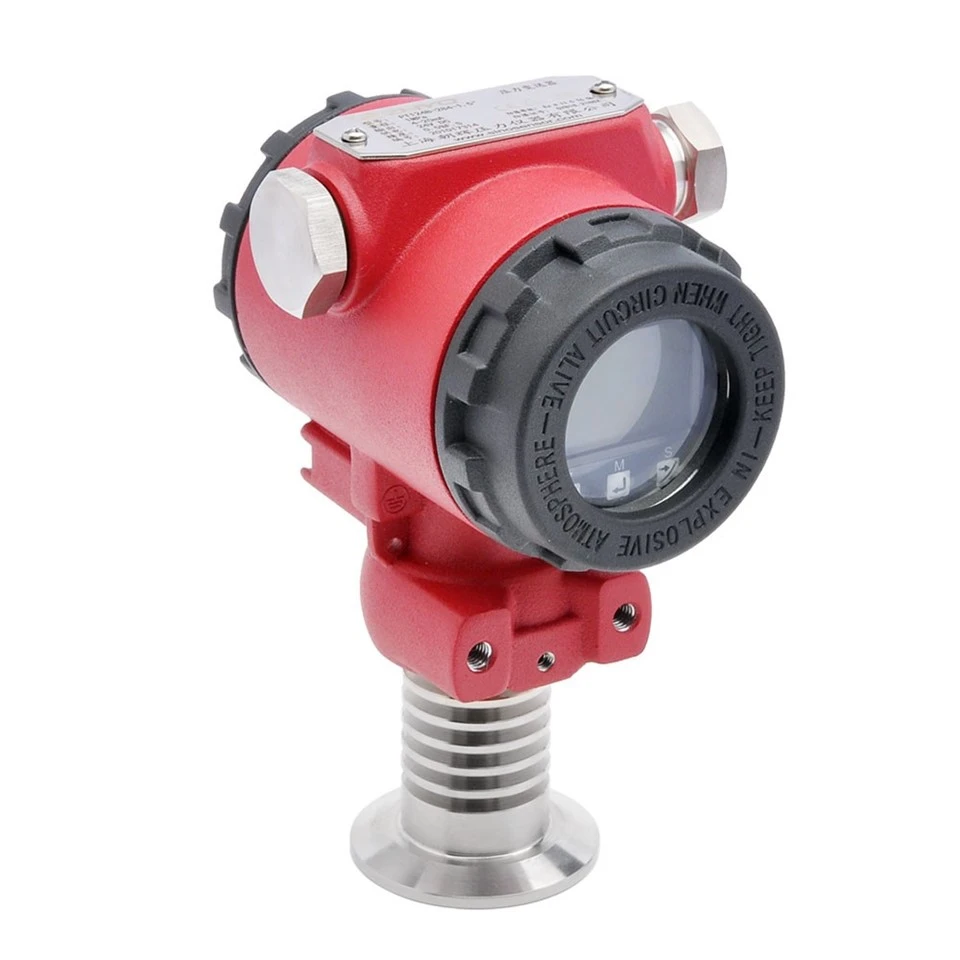

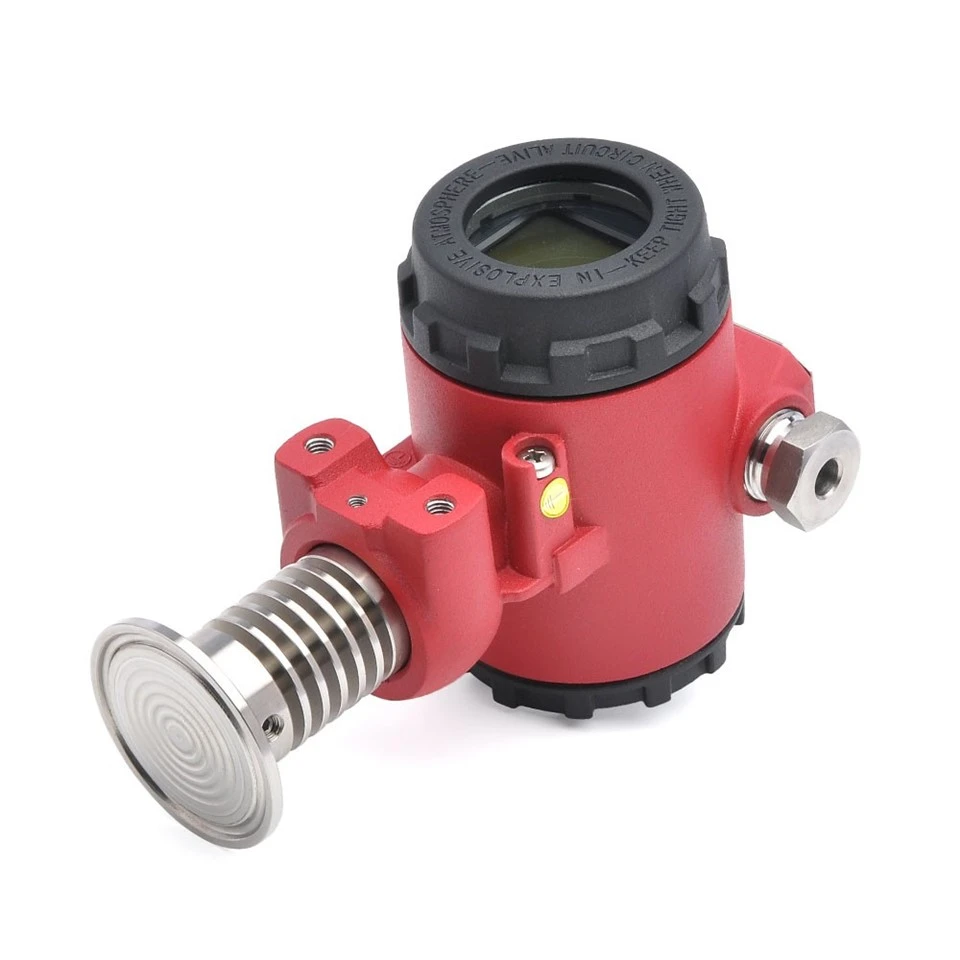

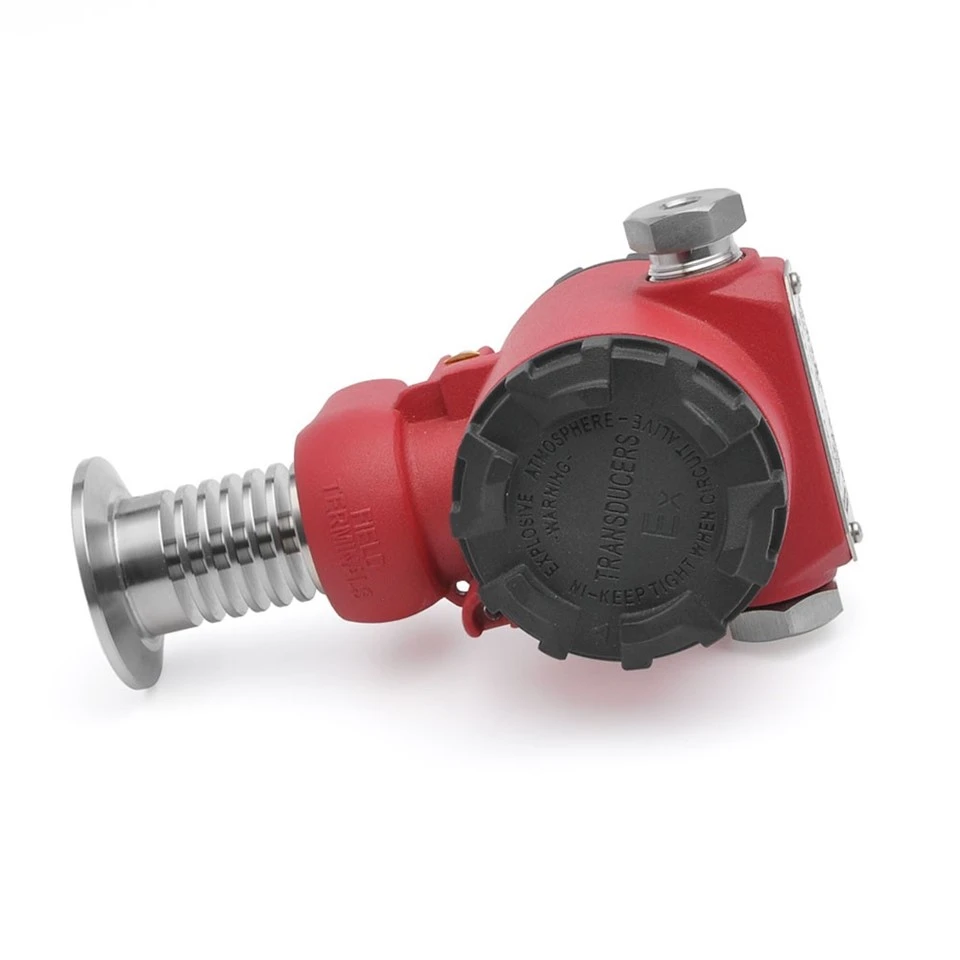

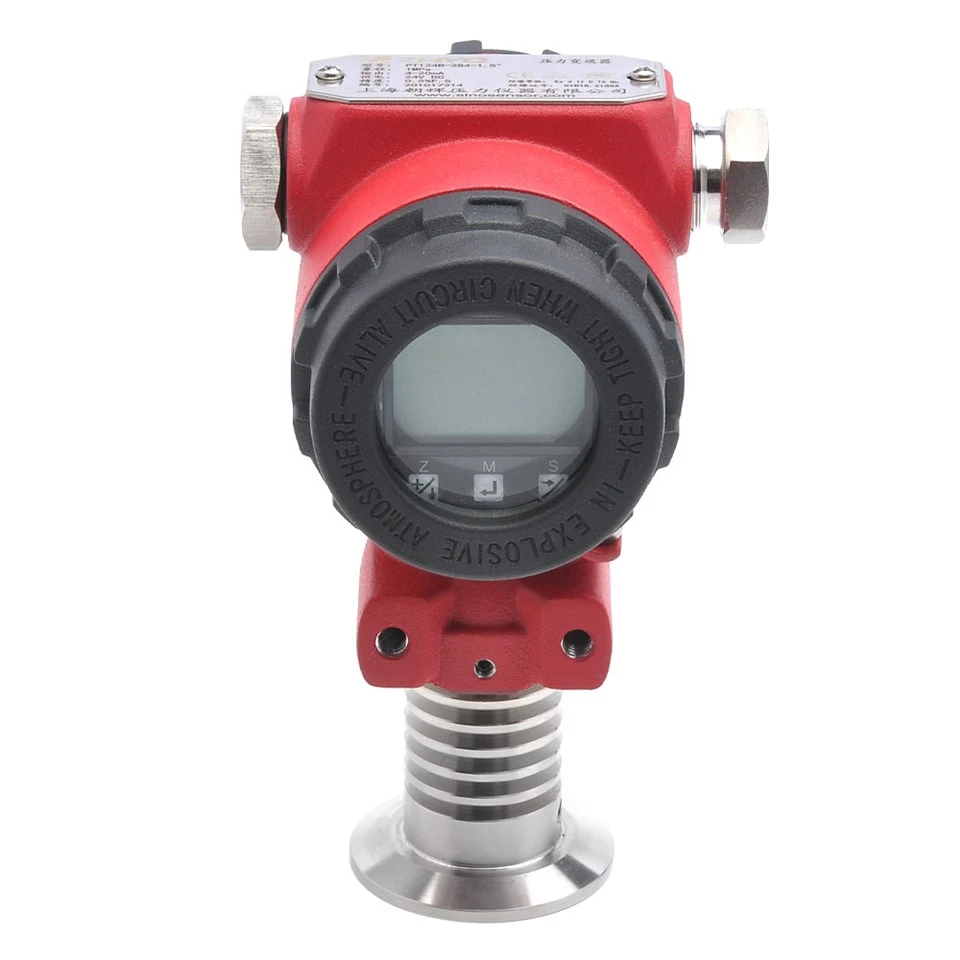

Tri-Clamp Diaphragm Explosion Proof Pressure Transmitter

Shanghai Zhaohui Pressure Apparatus Co., Ltd. is one of the leading manufacturers and suppliers of tri-clamp diaphragm explosion proof pressure transmitter in China, also supports customized service and 1 year warranty. Welcome to wholesale bulk durable tri-clamp diaphragm explosion proof pressure transmitter in stock here from our factory.

Tri-Clamp diaphragm explosion proof pressure transmitter utilizes a 3-A approved Tri-Clamp ferrule connection, enabling rapid tool-less detachment for autoclave or steam-in-place cycles without dismantling piping. The flush diaphragm sits exactly level with the inner tube wall, ensuring zero product holdup and eliminating microbiological growth niches in bio-pharmaceutical lines. All wetted surfaces are mechanically polished to Ra ≤ 0.4μm and passivized to resist pitting from saline or acidic rinsing solutions. The tri-Clamp flameproof pressure transmitter fill fluid is non-toxic, USP Class VI silicone oil, safe even in case of accidental diaphragm rupture. Its compact, low-mass housing reduces thermal inertia, allowing the transmitter to survive bake-out temperatures up to 180°C during sterilization without re-calibration. The electronic chamber carries ATEX and IECEX certifications for alcohol or solvent vapor environments common in distillation operations. With an IO-Link smart output,tri-Clamp sanitary pressure transmitter provides diagnostic data on diaphragm integrity and internal temperature. Tri-Clamp diaphragm explosion proof pressure transmitter is indispensable for vaccine production, sterile filling machines, dairy pasteurizers, and beverage carbonation systems requiring both explosion safety and absolute hygiene.

Tri-Clamp diaphragm explosion proof pressure transmitter is used in pharmaceutical fermenters, dairy pasteurizers, breweries, and cosmetic cream mixers. The sanitary connection allows quick dismantling for CIP/SIP sterilization, meeting FDA and 3A standards for bacteria-free measurement in edible oil, vaccines, and juice production.

Electropolished surface (Ra≤0.4μm) with 3A-certified ferrule enables tool-free removal. FDA-compliant fill fluid ensures product safety. Survives 180°C steam sterilization. Dead-leg free design eliminates bacterial harborage in sanitary lines.
