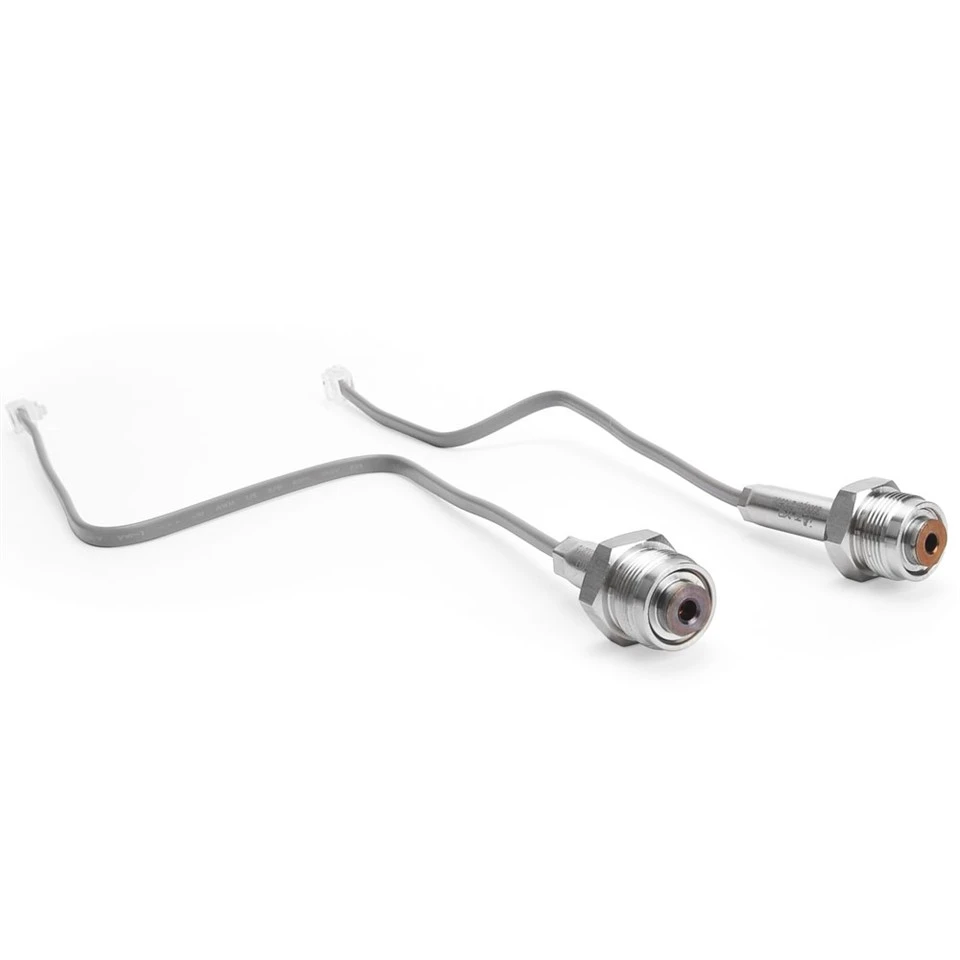

Airless Sprayer Pressure Sensor

Shanghai Zhaohui Pressure Apparatus Co., Ltd. is one of the leading manufacturers and suppliers of airless sprayer pressure sensor in China, also supports customized service and 1 year warranty. Welcome to wholesale bulk durable airless sprayer pressure sensor in stock here from our factory.

Airless sprayer pressure sensor engineered for paint automation systems, airless sprayer pressure transducer sensor uses a sputtered thin‑film or oil‑filled piezoresistance chip within a stainless steel housing. Its Titanium Nitride‑coated diaphragm resists abrasion from pigments, fillers, and solvents common in high‑pressure spraying (500‑5000 psi). Radiometric 0.5‑4.5 V or 4‑20 mA outputs feed directly to the motor controller, which adjusts pump speed to maintain constant tip pressure despite viscosity changes or nozzle wear. With a sub‑millisecond response time, airless sprayer pressure sensor captures rapid fluctuations during trigger cycles, ensuring uniform coating thickness on conveyor‑fed parts. Temperature compensation accounts for heat generated by the pump. Quick‑disconnect electrical terminals simplify field swaps, and the sensor withstands over 1 million pressure cycles. Accuracy of ±0.5 % FS and repeatability within ±0.2 % help reduce over spray and material costs. Airless sprayer pressure transducer is widely adopted in industrial finishing lines, automotive refinishing, and wood coating applications.

Airless sprayer pressure sensor is used in industrial paint finishing lines, automotive refinishing booths, and wood coating systems. Ensures consistent automation pressure for uniform film thickness. Also deployed in ceramic glaze spraying and protective coating applications, reducing over spray and material waste while improving surface quality on moving conveyor-fed parts.

Titanium Nitride‑coated diaphragm resists pigment abrasion. Response time < 1 ms captures rapid trigger fluctuations. Radiometric 0.5‑4.5 V or 4‑20 mA outputs. Withstands 1 million cycles. Temperature compensation offsets pump‑generated heat. Compact stainless body with quick‑disconnect terminals simplifies field replacement. Accuracy ±0.5 % FS, repeatability ±0.2 %.
