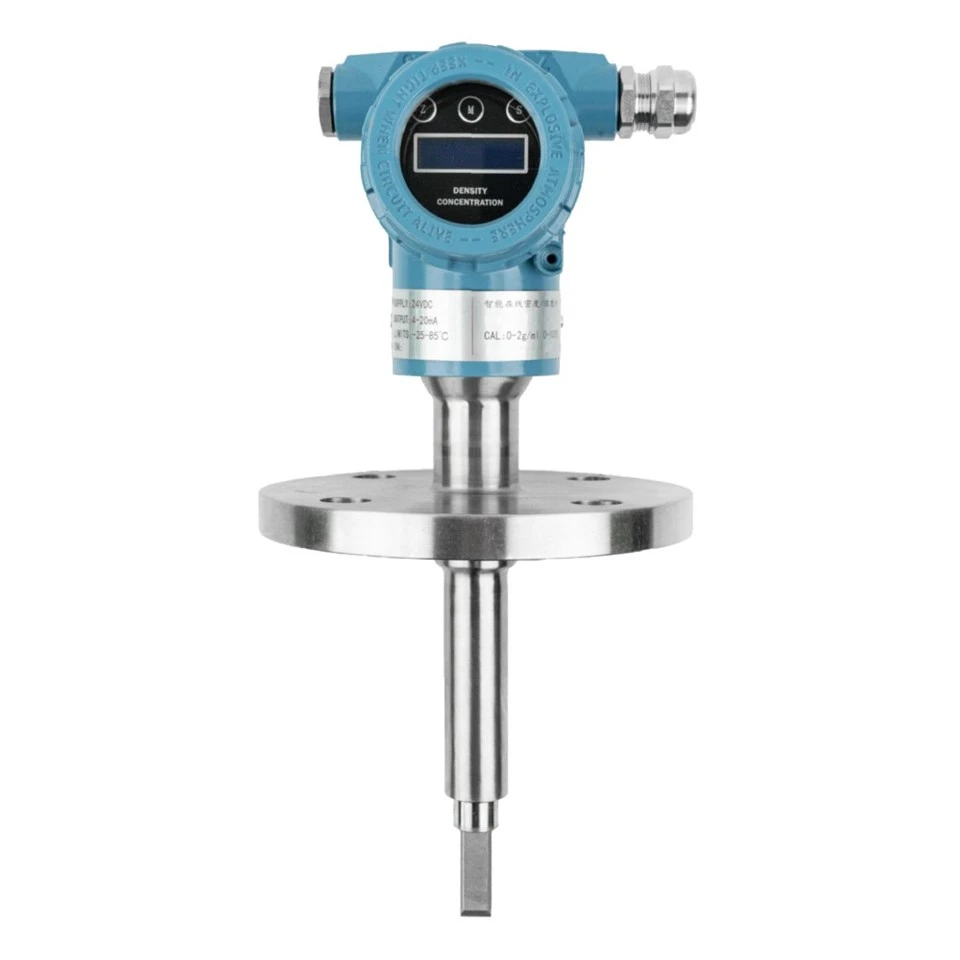

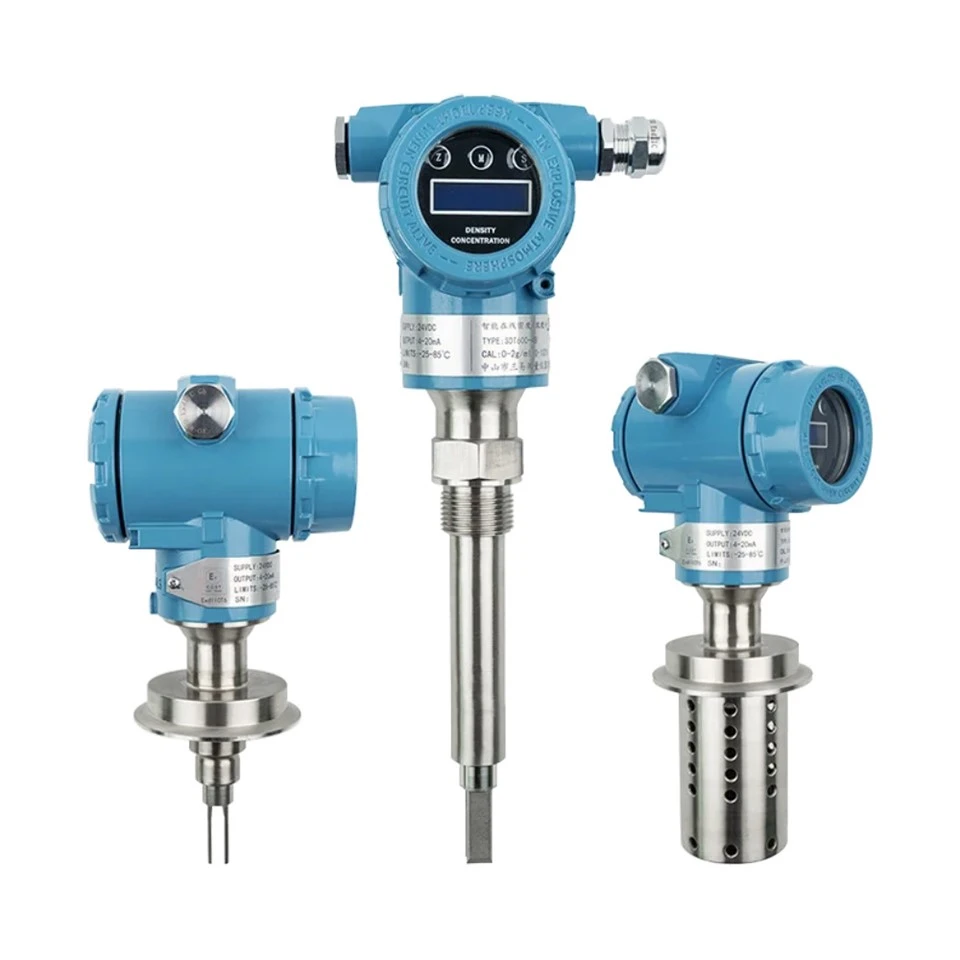

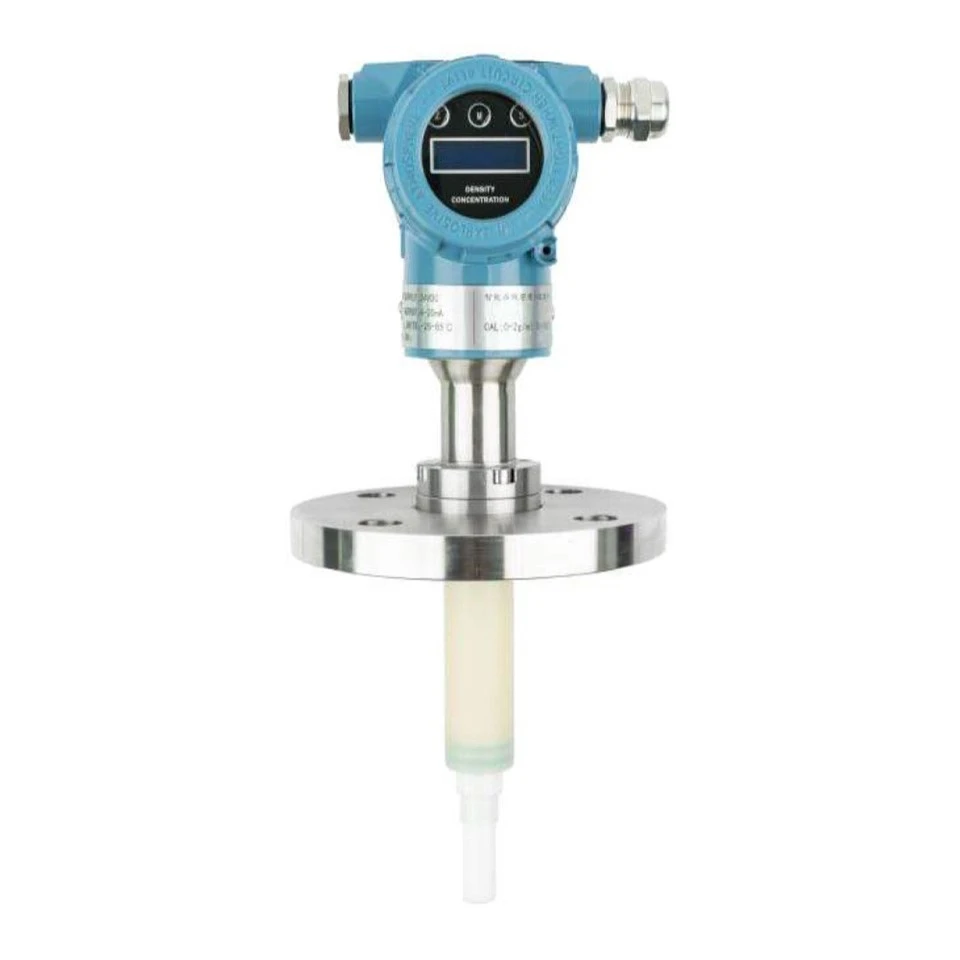

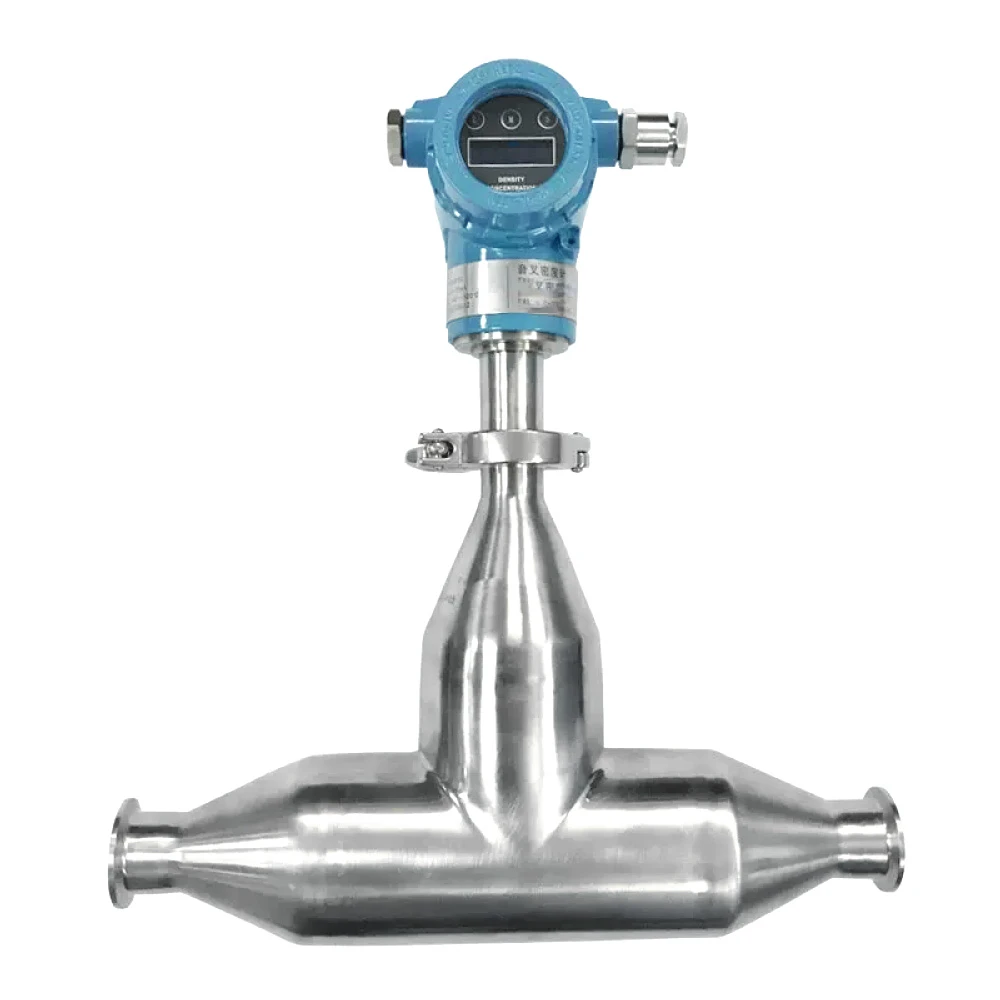

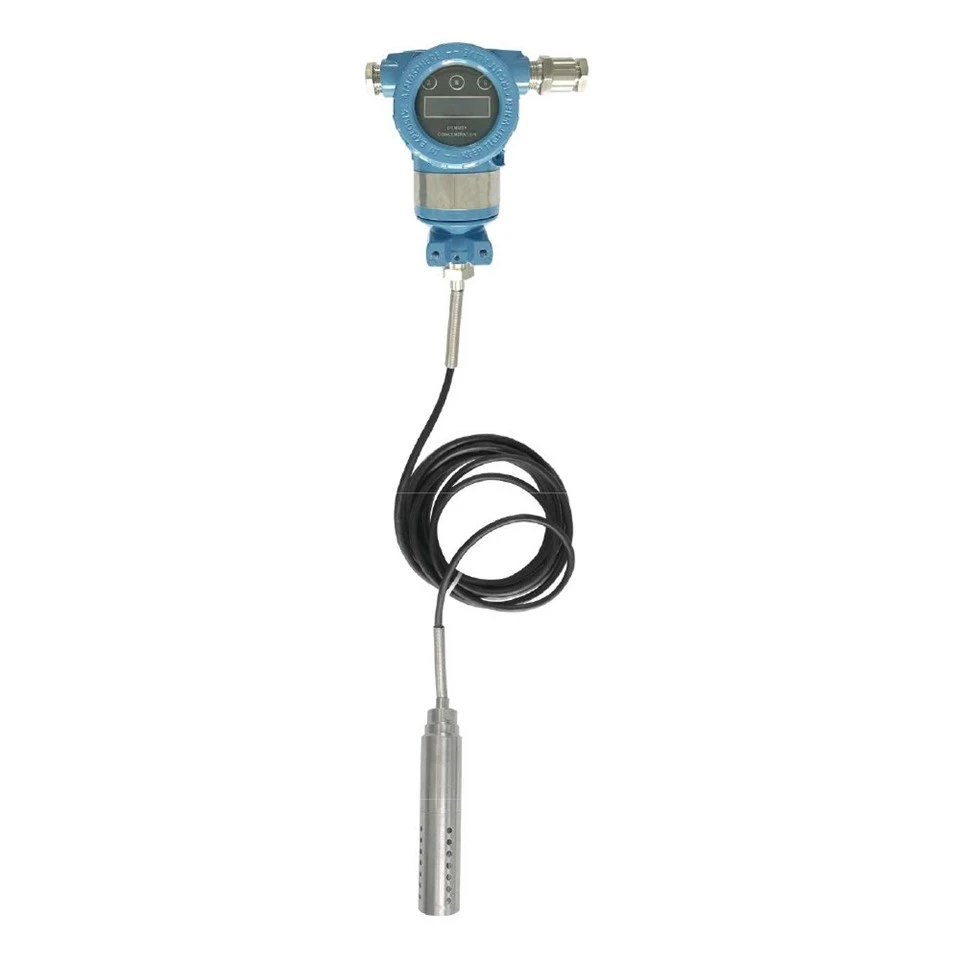

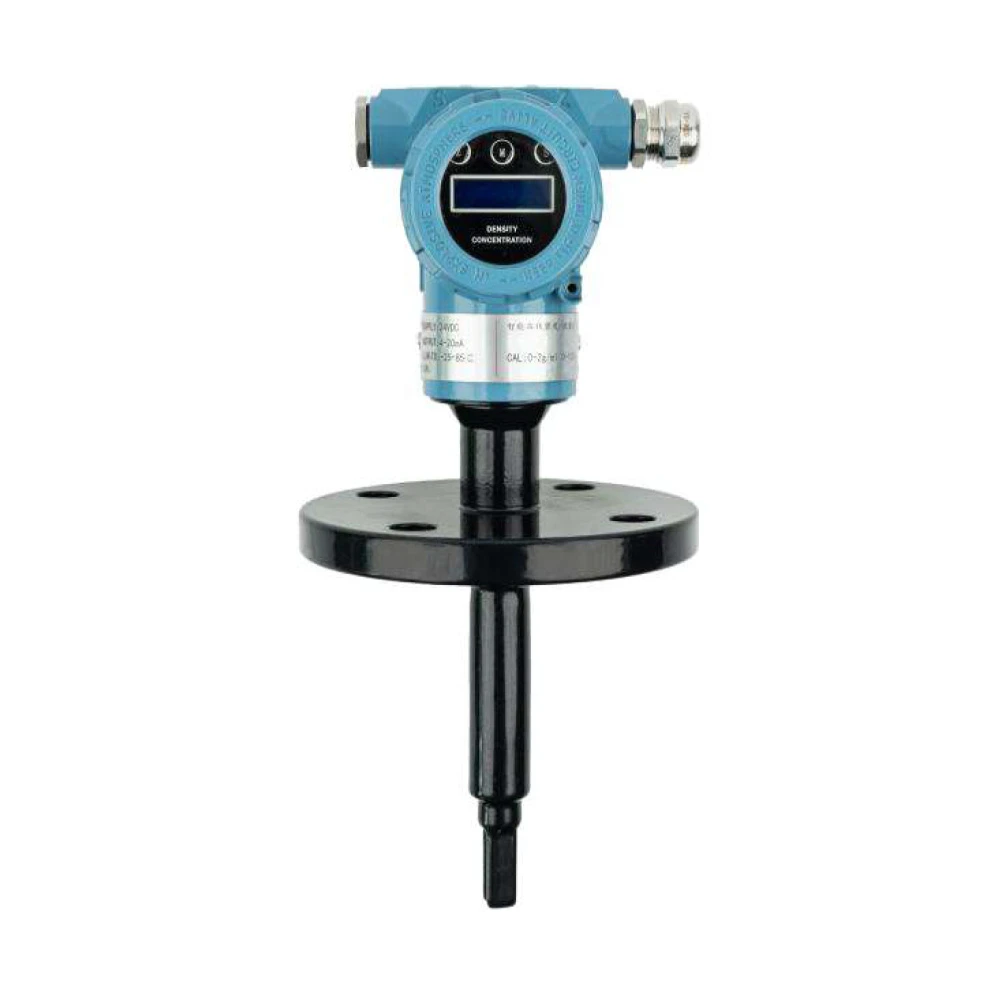

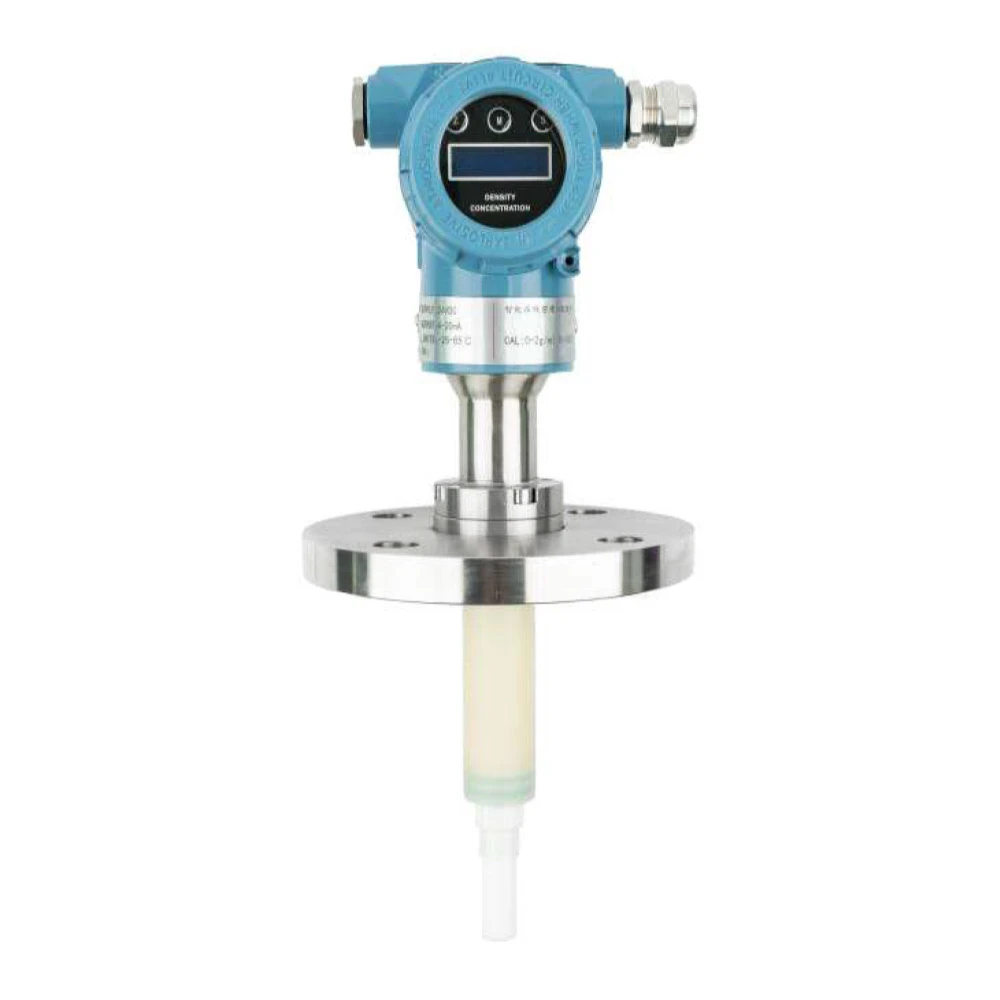

Inline Tuning Fork Density Meter

Shanghai Zhaohui Pressure Apparatus Co., Ltd. is one of the leading manufacturers and suppliers of inline tuning fork density meter in China, also supports customized service and 1 year warranty. Welcome to wholesale bulk durable inline tuning fork density meter in stock here from our factory.

The inline tuning fork density meter is a vibratory instrument for continuous, real-time liquid density measurement in pipelines and tanks. Its operation is based on a piezoelectric crystal exciting a two-pronged fork to vibrate at its natural resonant frequency. The presence of the process fluid alters this frequency, which is inversely proportional to the fluid's density. A second piezoelectric element detects the vibration, and an integrated microprocessor converts the frequency signal into a density reading.

Key features include high accuracy, typically ±0.001 g/cm³, and built-in temperature compensation via a PT100 sensor to ensure reliable data across varying process conditions. Constructed from robust, wetted materials like 316L stainless steel or Hastelloy, these meters are suitable for aggressive media. They are maintenance-free, offer flexible connectivity (4-20mA, RS485, HART), and are widely used in chemical, petroleum, food, and pharmaceutical industries for quality control and process monitoring.

This density meter is widely applied in chemical blending, petroleum refining, food & beverage concentration control, and pharmaceutical fermentation. It enables real-time quality monitoring, interface detection, and concentration measurement, significantly improving process efficiency, reducing product variability, and ensuring consistent product quality in continuous or batch production processes.

Featuring high accuracy (±0.001 g/cm³), built-in temperature compensation, and robust 316L stainless steel construction, this meter offers maintenance-free operation, real-time response, and flexible outputs (4-20mA, RS485, HART). It withstands harsh conditions, provides excellent repeatability, and delivers reliable performance with no moving parts or consumables.
