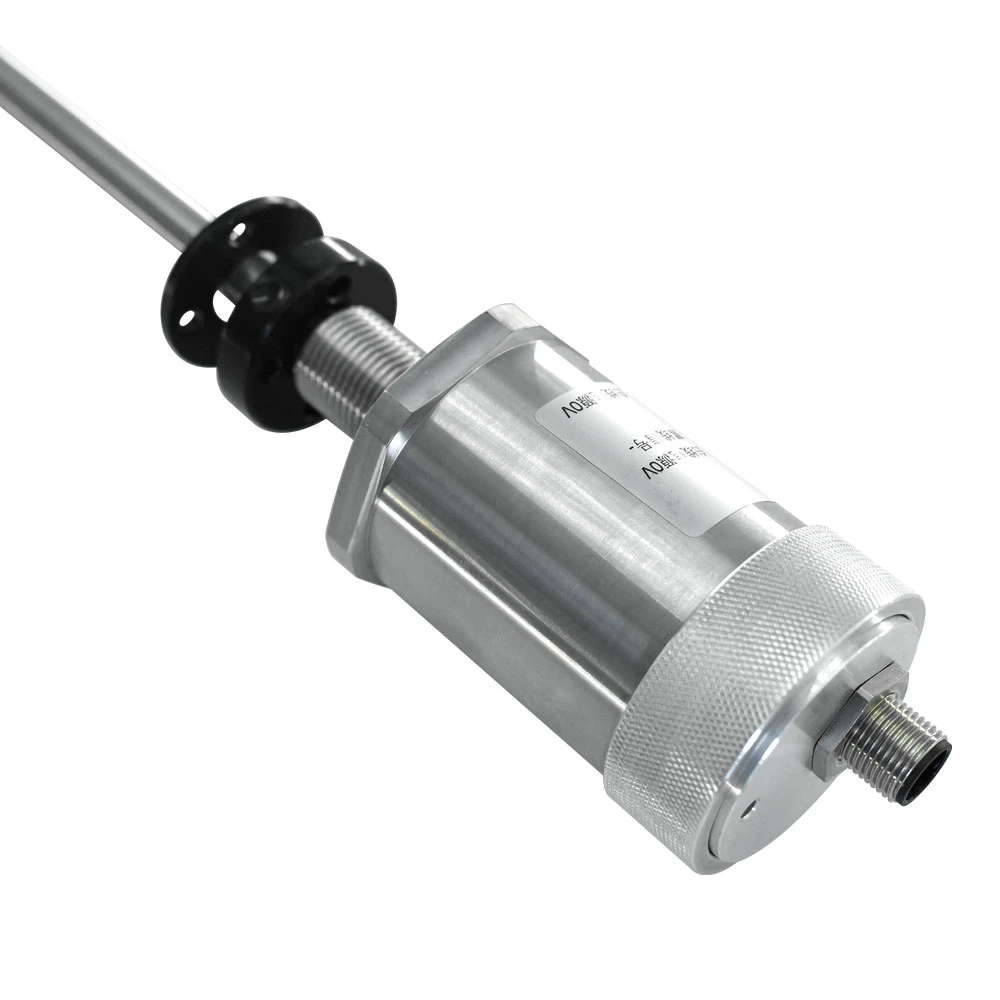

Hydraulic Cylinder Linear Position Sensor

Shanghai Zhaohui Pressure Apparatus Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic cylinder linear position sensor in China, also supports customized service and 1 year warranty. Welcome to wholesale bulk durable hydraulic cylinder linear position sensor in stock here from our factory.

This embedded hydraulic cylinder linear position sensor is engineered for direct immersion into hydraulic actuator bores or piston-rod cavities, withstanding static pressures up to 600 bar (8700 psi) and peak surges to 1000 bar. The sensing element-either magnetostrictive, LVDT, or eddy-current-is housed within a thick-wall, non-magnetic stainless or titanium tube, welded and O-ring sealed against high-temperature hydraulic fluids (mineral oil, water-glycol, or phosphate esters) ranging from –40°C to +125°C. Integral temperature compensation electronics adjust for thermal expansion of the cylinder barrel, while built-in EMC suppression and reverse-polarity diodes prevent interference from adjacent solenoid valves and variable-frequency drives. Outputs are typically 4–20 mA loop-powered or 0–10 V, with diagnostics for over stroke, under-voltage, or internal short-circuit conditions. The hydraulic cylinder linear displacement sensor's dead zone is minimized (less than 25 mm) to utilize full piston travel. The hydraulic cylinder linear position sensor's robust construction includes a pressure-port connector or armored flying leads, ensuring reliable piston position feedback for closed-loop speed, acceleration, and cushioning control in heavy-duty earth moving, offshore winches, and aerospace actuation systems, where external sensors fail due to space constraints or hostile media.

Critical in heavy off-highway machinery-excavators, wheel loaders, bulldozers, and crane telescopic booms. Also integral to offshore sub sea actuators, aerospace landing-gear retraction, steel mill rolling mills, injection-molding clamp cylinders, and large marine steering systems, where embedded sensors survive extreme pressure, temperature, and contamination.

Built with pressure-rated titanium or stainless tube, O-ring sealed, and oil-filled cavity to dampen shock. Provides continuous analog output immune to vibration-induced noise. Features temperature-compensated circuitry, reverse-polarity protection, and integrated EMC filtering for reliable operation within high-current solenoid environments.
