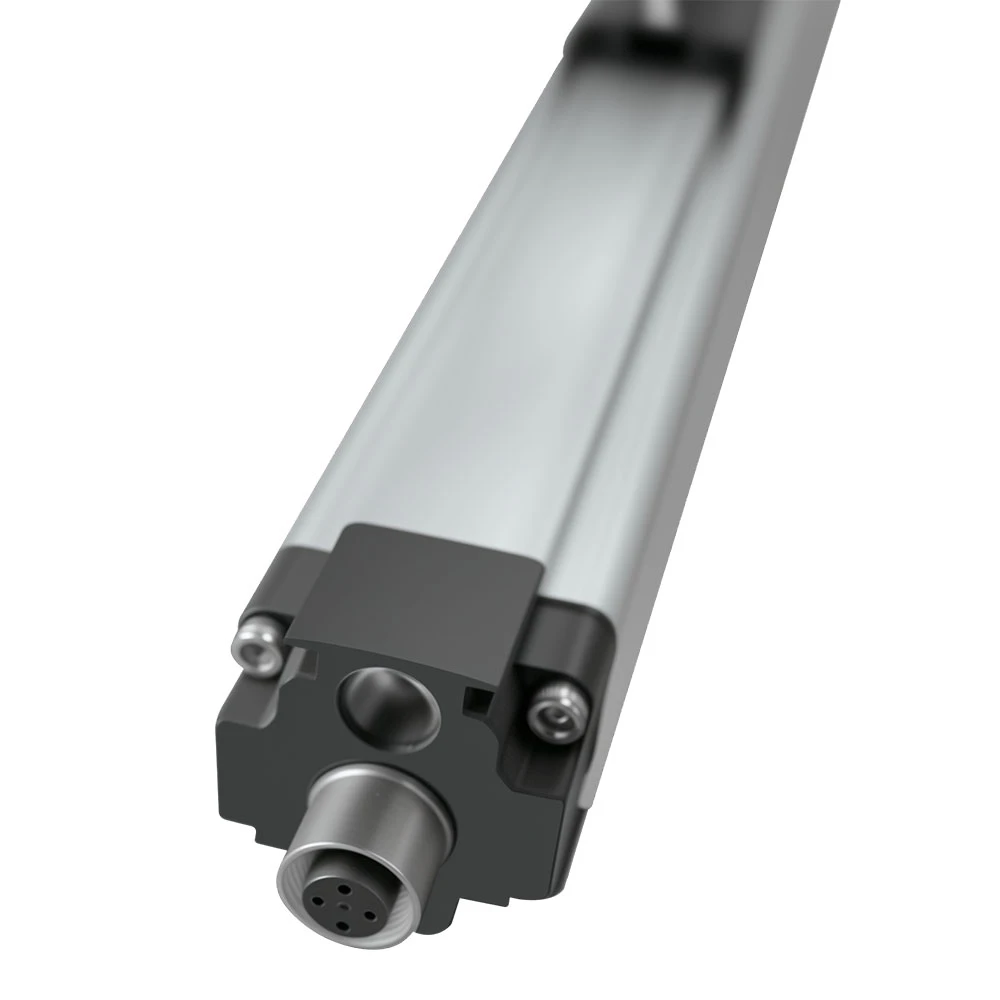

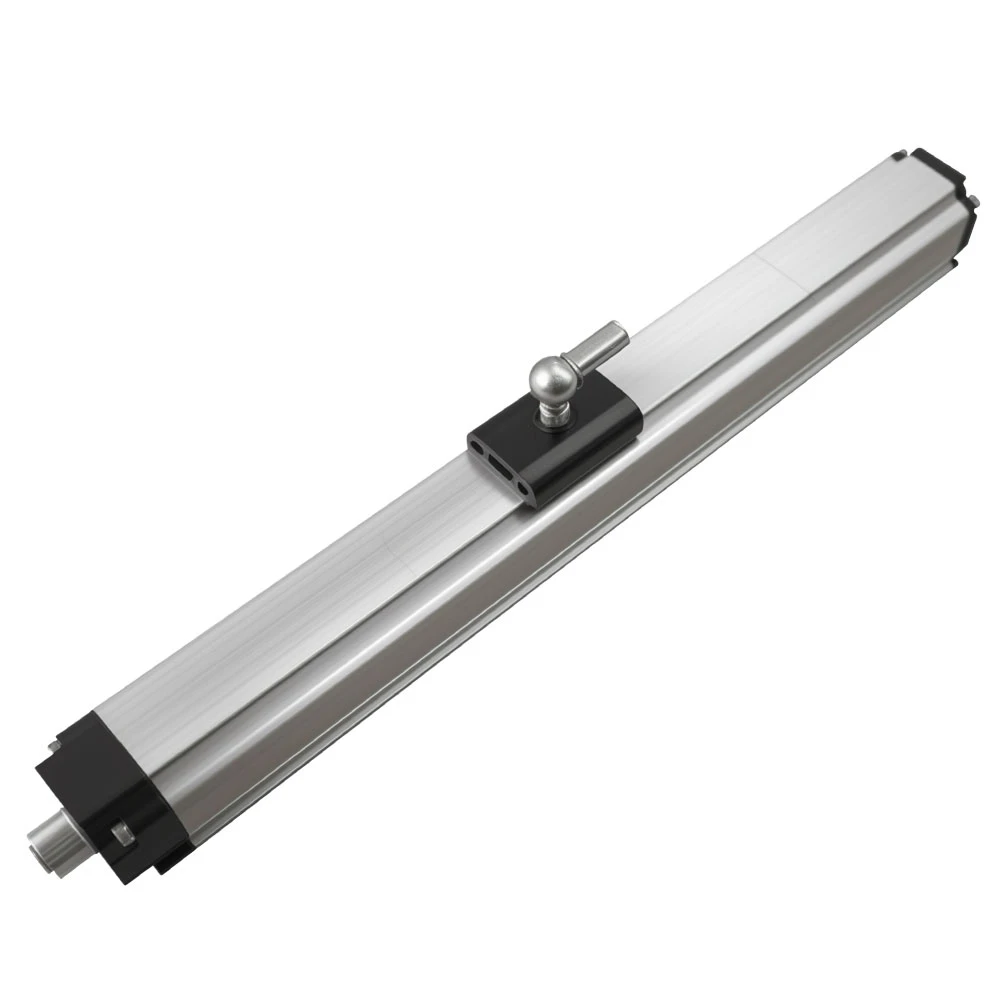

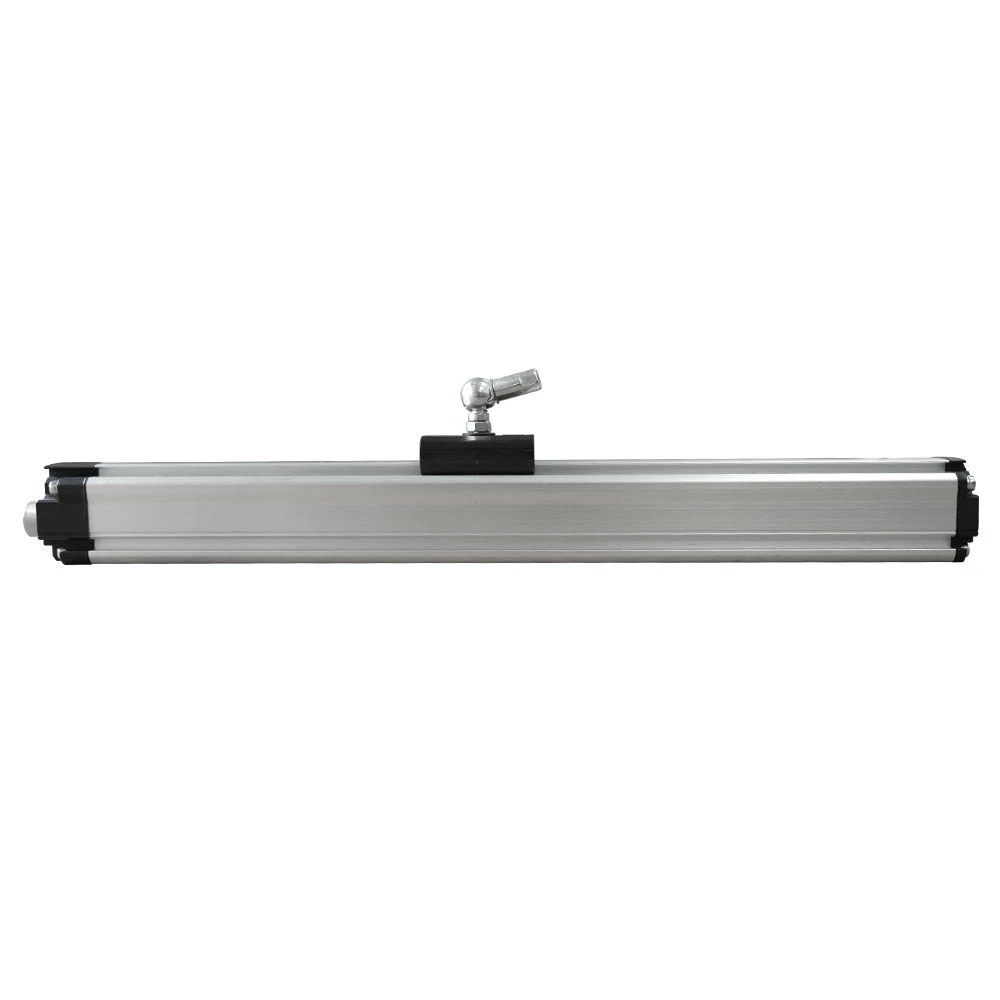

Slider Magnetostrictive Position Sensor

Shanghai Zhaohui Pressure Apparatus Co., Ltd. is one of the leading manufacturers and suppliers of slider magnetostrictive position sensor in China, also supports customized service and 1 year warranty. Welcome to wholesale bulk durable slider magnetostrictive position sensor in stock here from our factory.

Operating on the Wiedemann effect, this non-contact slider magnetostrictive position sensor determines the absolute position of one or multiple permanent-magnet slider rings that glide frictionlessly along a hermetically sealed wave guide tube. The interrogation current pulse generates a torsional strain wave reflected back to the pickup coil; the elapsed time-of-flight directly correlates to slider distance with micron-level accuracy (±0.01% of full stroke) and outstanding repeatability (±0.001% FS). Unlike incremental encoders, the slider magnetostrictive displacement sensor retains absolute position upon power-cycling without homing routines. The wave guide is encased in aluminum or stainless profile with integral mounting slots, supporting up to 30 sliders simultaneously on a single 10-meter length. Data interfaces include SSI, CANopen, EtherCAT, and Profibus, with sampling rates reaching 5 kHz. The slider magnetostrictive position sensor's complete absence of mechanical wear ensures an MTBF exceeding 200,000 hours in high-cycle, high-vibration axes such as forming presses or saw positioning systems, where oil, dust, and metal chips are prevalent.

Dominates high-precision sectors including CNC machining centers, press brakes, panel saws, robotic arms, semiconductor wafer handlers, and automated storage retrievers. Essential in wind turbine pitch control, hydraulic press synchronizing, and glass-forming machines requiring fast, non-contact, multi-slider feedback with zero maintenance.

Delivers absolute digital output with nanosecond time-of-flight precision, zero wear, and unlimited mechanical life. Supports simultaneous multi-slider positioning on a single waveguide. Immune to dirt, oil, and moisture ingress. Enables high-speed data update rates (up to 5 kHz) with programmable zero, span, and direction settings.
